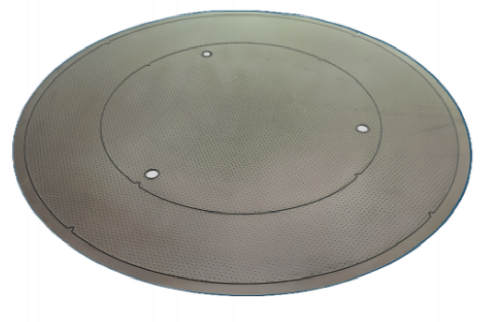

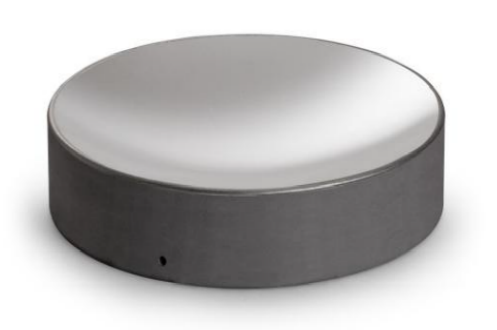

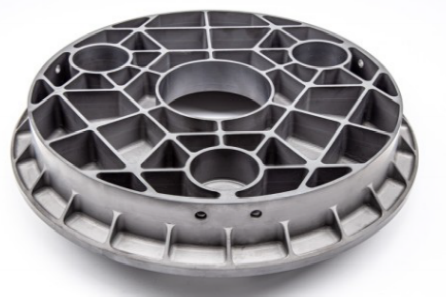

Sic Ceramics Plates
Silicon carbide (SiC) has characteristics very similar to diamond — it is one of the lightest, hardest, and most durable technical ceramic materials, with excellent thermal conductivity, acid resistance, and low thermal expansion. When physical wear becomes an important consideration, silicon carbide is an excellent material because it has good erosion resistance and wear resistance, making it suitable for various applications such as nozzles, shot peening nozzles, and cyclone separator components.
| Chemical composition | Unit | Data |
| SiC | % | ≥83 |
| Si | % | ≤16 |
| Physical properties | Unit |
Data
|
| Density | g/cm² | ≥3.02 |
| Porosity | % | ≤0.3 |
| Flexural Strength |
Mpa |
≥250(20℃) |
| ≥280(1200℃) | ||
| Thermal conductivity | W/m*k | ≥140(25℃) |
| Coefficient of thermal expansion | ((25-1200℃)/10℃ |
≤4.5±0.5 |
| Vickers hardness | Gpa | ≥20 |
