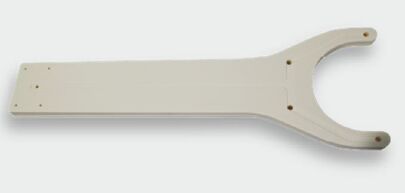

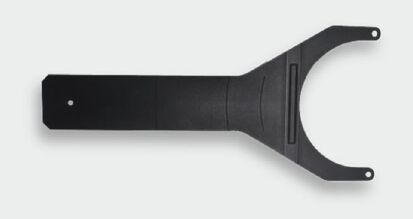

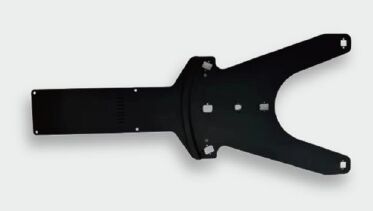

High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment

High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment
High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment

大画像 :  High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment

商品の詳細:
起源の場所: 中国
ブランド名: ZG
証明: CE
モデル番号: MS
お支払配送条件:
最小注文数量: 1個
価格: 10USD/PC
Packaging Details: Strong wooden box for Gloabal shipping
受渡し時間: 5～8営業日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 1000個
連絡先

High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment

説明
ハイライト:

High Hardness Ceramic Arm

,

High Temperature Resistance Ceramic Arm

,

Chemical Corrosion Resistance Ceramic Arm

Ceramic Arm
Zirconia Ceramics
1. It has excellent wear resistance, chemical corrosion resistance, high-temperature resistance, and magnetic resistance, making it usable in extremely harsh environments without contaminating materials or the environment.
2. It features high toughness, high bending strength, and high wear resistance, as well as excellent thermal insulation properties, with a thermal expansion coefficient close to that of steel.

Nano Alumina
Due to its fine particle size, nano alumina can be used to make synthetic gemstones, analytical reagents, as well as nano catalysts and carriers. When used in luminescent materials, it can greatly enhance their luminescence intensity. For ceramics and rubber toughening, it is several times more effective than ordinary alumina, particularly in improving the density, surface smoothness, and thermal fatigue resistance of ceramics. Nano alumina is mainly used in key components of YGA laser crystals and integrated circuit substrates, and is also added to coatings to improve wear resistance.
High-performance ceramic arm designed for semiconductor manufacturing applications requiring exceptional precision and durability.
Product Features
  • Material Characteristics: High hardness, high temperature resistance, chemical corrosion resistance
  • High-Precision Machining: Flatness of the nozzle position can be controlled within 0.02mm
  • Customized Design: Customizable sizes (up to around 400mm) and hole positions, compatible with mainstream semiconductor equipment
Mechanical Properties
Property Unit Silicon Carbide
Density g/cm³ 3.15
Vickers Hardness Hv0.5 2650
Flexural Strength MPa 450
Compressive Strength MPa 2650
Elastic Modulus GPa 430
Fracture Toughness MPa*m¹/² 4
Poisson's Ratio
0.14
Young's Modulus GPa 430
Silicon Carbide Raw Material Purity % 99
Thermal Properties
Property Unit Silicon Carbide
Thermal Conductivity at 25°C W/mK 110
Melting Point °C 2800
Specific Heat J/g*K 0.8
Linear Expansion Coefficient 10⁻⁶/K 4
Electrical Characteristics
Property Unit Silicon Carbide
Dielectric Constant 1MHz 10
Breakdown Voltage V/cm 1×10⁶
Dielectric Loss 1MHz 0.001
Resistivity Ω*cm 10²-10⁶


High Hardness High Temperature Resistance Chemical Corrosion Resistance Ceramic Arm for Semiconductor Equipment 0
